DK-22

Home > First category > DK-22

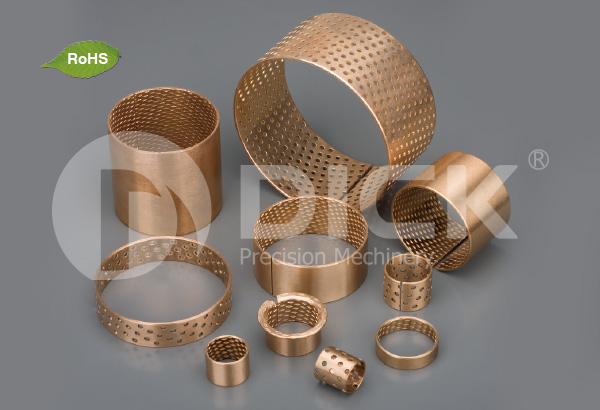

: DK-22 BRONZE WRAPPED BEARING WITH THROUGH HOLES
The bearings are wrapped of a cold formable homogenous bronze (CuSn8), which will obtain exceptional material properties. The standard size are fitted with holes. which are dispersed in a special Way over the whole bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film in the start movement and therewith reduce the start friction. The material suitable for construections, agriculture etc where high Ioad and slow movement are occurring.
Size table download

Golden picture

Note: The products in the figure can also choose different matrix materials according to different working conditions.: Copper alloy

Available form

Technical Parameters

Max. Load	Static	120 N/mm²	Elongation	40%
	Dynamic	40 N/mm²	Temp.	-100℃ ~ 200℃
Maximum line speed (lubrication)		2m/s	Friction coefficient	0.08~0.25
Max. PV		2.8N/mm²*·m/s	Thermal conductivity	58W (m*k)^-1
Tensile strength		450 N/mm²	Coef. of thermal expansion	18.5×10^-6 k^-1
Hardness		HB 110-150
